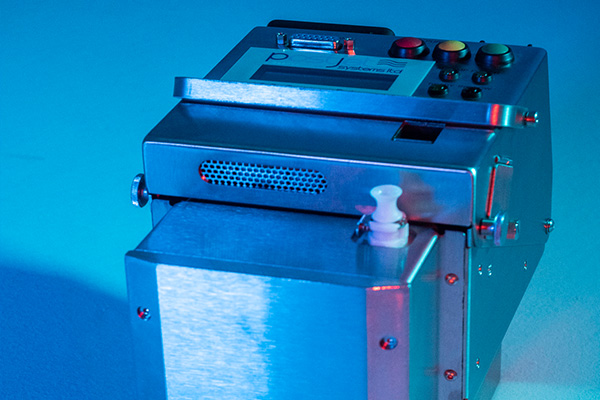

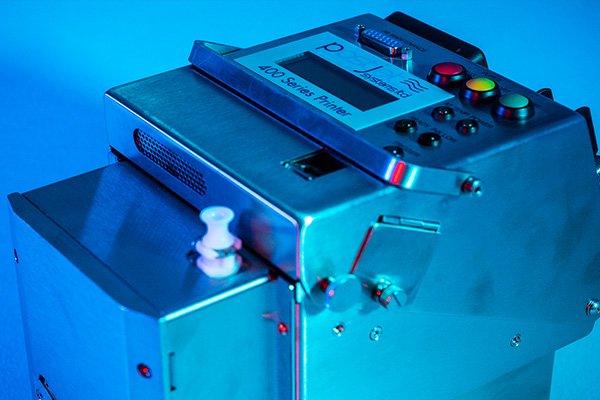

The PostJet 400 Postal Series
Postjet 400 series includes the very latest print technologies available.
The 450 and 460 (400 Series) printers combine a compact foot print with built-in fully functional control electronics delivering high-speed high-resolution printing.

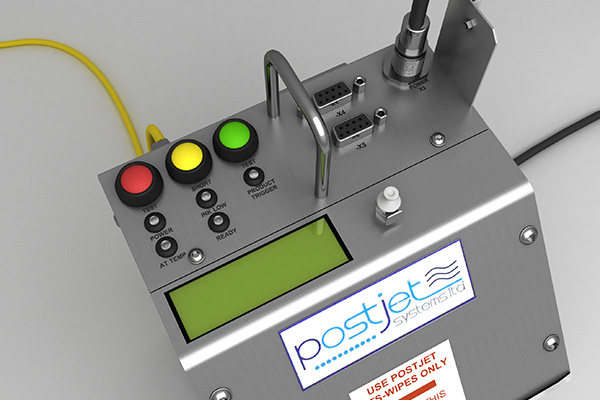

With its integrated controller and integral LCD display, the 400 Series were the first PostJet printers to include full functionality in a single box, allowing easy retrofit in a variety of applications.
These industry leading printers allow users to connect via standard web browsers for status, configuration, diagnostics and print run configuration. With print heights from 10mm to 29mm on the 450 and 20mm to 50mm on the 460. These printers offer a solution to the most demanding requirements.
The 400 Series are easy to install, setup and maintain, and with fewer spare parts to manage customers benefit from much lower maintenance costs, making these our lowest cost of ownership solutions.
Highlights
- Up to 5.1m/s line speed at various resolutions dependant on required print heights

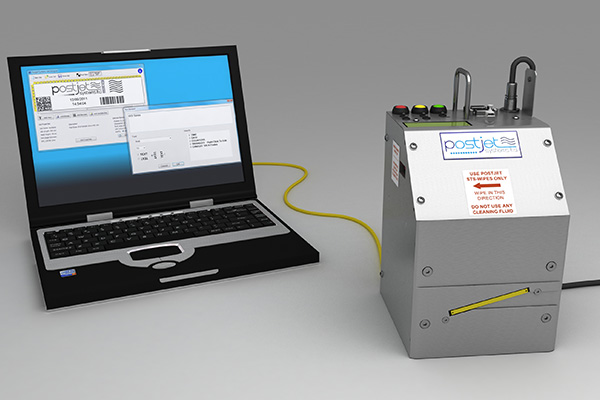

- User-friendly, PC controlled graphical interface
- Lowest cost of ownership solution
- Proven reliability
- 1 box solution – Integrated controller
- Compatible with multiple ink types
Print Configurations
The print engine is angled to achieve different print heights / resolutions. Below are the commonly used print heights and resolutions:
450 Print Heights and Resolutions
Print height (mm) | Vertical (DPI) | Horizontal (DPI) |
10 | 356 | 153 / 101 |
15 | 209 | 104 |
20 | 158 | 158 / 106 |
25 | 128 | 108 / 163 / 217 / 271 |
29 | 111 | 111 |
460 Print Heights and Resolutions
Print height (mm) | Vertical (DPI) | Horizontal (DPI) |
20 | 312 | 212 |
25 | 256 | 108 / 216 |
29 | 229 | 111 |
32 | 203 | 115 |
45 | 142 | 142 |
50 | 128 | 158 |
Print Specification
Max line speed: | 5.1m/s (resolution dependant) |
Max throughput: | 30 per second (>100k per hour) |
Individually Addressable channels: | 128 (450), 256 (460) & 384 (470 TS – click here for 470 TS information). |
Print Job Creation: | Offline via Windows application |
Print Job Information: | Max Stored Jobs> 1000, Max on-the-fly Jobs100, Variable Data 288 characters per job |
Fonts: | Any TrueType |
Dynamic Variables: | All standard time/date codes |
Technical Overview
CPU: | High performance Digital signal Processor |
External storage: | 2GB SD Card |
Operating System: | Real time embedded OS |
Display: | 2 x 16 character LCD |
Product detects: | 1 Max (head/host) |
Encoders: | 1 Max (internal/external/host) |
Connectivity: | 1 x RS232, 1 x RS422, 1 x Ethernet (FTP), 1 x Host Control Connectors (compatible with most currently available host control systems), 1 x Alarm Beacon (optional), 7 x configurable Optically Isolated input(optional), 7 x configurable Optically Isolated output(optional), 1 x Centronics Parallel(optional) |
Status: | Via display, discrete I/O and RS422/RS232 |
Max umbilical length: | 4m |
Factory air: | Not required |
